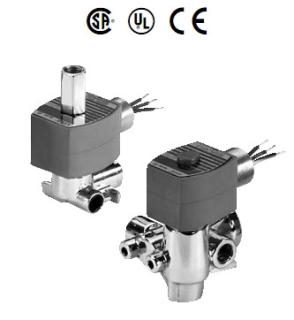

美國ASCO阿斯卡先導電磁閥

SOLENOID VALVES

pilot operated

hung diaphragm

3/8 to 1 1/2

FEATURES

? Two way shut-off valves for the control air, inert gas, water, oil and other

gases/liquids compatible with the sealing material used

? Valves do not require a minimum operating pressure

? All products are covered by Pressure Equipment Directive 97/23/EC and are

suitable for group 1 and 2 fl uids

? The solenoid valves satisfy all relevant EC directives

一般

差壓見?規格?[1巴=100千帕]

較大粘度65厘沲（毫米2 /秒）

響應時間15 - 120毫秒

佛羅里達州的UID（?）溫度范圍（TS）密封材料（?）

空氣，惰性氣體，水，油 - 20°C至+85°C NBR（丁腈）

電氣特性

線圈絕緣等級F級或H

連接器鏟形插頭（電纜直徑6-10毫米）

連接器specifi陽離子ISO 4400/ EN 175301-803，A型

電氣安全IEC335

電器外殼防護等級IP65模制（EN60529）

標準電壓DC（=）：24V - 48V

（其他電壓和60赫茲的要求）AC（?）：24V - 48V - 115V - 230V/50赫茲

INSTALLATION

? The solenoid valves can be mounted in any position without affecting operation,

unless indicated otherwise in the specifi cations table.

? Stainless steel valves are standard supply with mounting brackets

? Pipe connection identifi ers are: G = G (ISO 228/1), E = Rp (ISO 7/1) or B = NPT (ANSI 1.20.3)

? Installation/maintenance instructions are included with each valve
