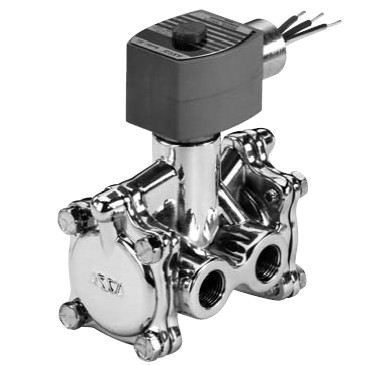

EF8316G004MB,ASCO三通防爆電磁閥

技術信息

交流/直流交流

驅動方法 電磁線圈

閥體材質 黃銅

線圈類型 FT

線圈型號 238614-005-d

Cv/Kv（壓力端口）4Cv~3.46Kv

入口管尺寸（NPT）1/2

較大環境溫度 125°F~52°C

較大流體溫度 180°F~82°C

小環境溫度 -4°F~20°C

小流體溫度 -4°F~20°C

孔尺寸 5/8

額定功率為 60Hz 10.1W

小工作壓力（空氣）15psi~1.03bar

較大工作壓力（空氣）150psi~10.3bar

三通電磁閥

這些閥門有三個管接頭和兩個孔。當一個孔是打開的，另一個是關閉的，反之亦然。它們通常被用來交替施加壓力，從一個閥致動器或一個單一的作用缸的排氣壓力。這些閥門通常是關閉的，通常是開的或是通用的。

EF8316G004MB,ASCO三通防爆電磁閥

Technical Information

AC/DC  AC

Actuation Method  Solenoid

Body Material  Brass

Coil Class  FT

Coil Number  238614-005-D

Cv/Kv (Pressure Port)  4Cv~3.46Kv

Inlet Pipe Size (NPT)  1/2

Max Ambient Temperature  125°F~52 C

Max Fluid Temperature  180°F~82 C

Min Ambient Temperature  -4°F~20 C

Min Fluid Temperature  -4°F~20 C

Orifice Size  5/8 in

Watt Rating 60 Hz  10.10 W

Min Operating Pressure (Air) 15psi~1.03bar

Max Operating Pressure (Air) 150psi~10.3bar

3-Way Solenoid Valves

These valves have three pipe connections and two orifices. When one orifice is open, the other is closed and vice versa. They are commonly used to alternately apply pressure to an exhaust pressure from a valve actuator or a single acting cylinder. These valves can be normally closed, normally open or universal.
